Certifications
Main characteristics
√ 240 Vac mains power supply
√ Incremental or absolute encoder and Hall sensor inputs
√ Service serial for real time programming and debugging
√ Safe Torque Off SIL3/PLe inputs (STO)
√ External braking resistor management

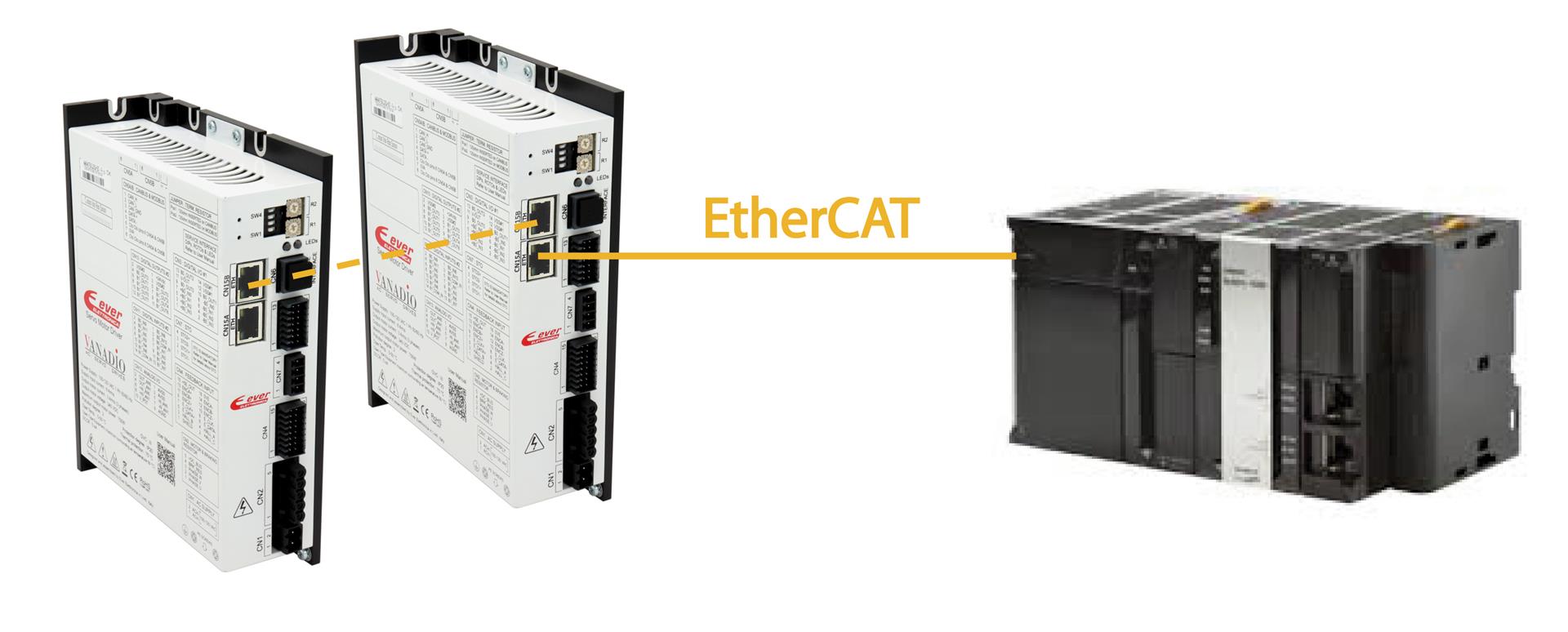

√ Compliance with the most common PLC Masters on the market
√ UL recognized certified
CONNECTOR KIT
SOFTWARE KIT FOR CONFIGURATION
Software configuration:
Ever co. proprietary PC Software Tools for easy and quick development, configuration and supervision of each system.
- Autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles
- Torque mode for operation with torque limitation
- Speed control thanks to digital inputs, analogue inputs or fieldbus
- Electronic CAM with advanced programming of internal profiles inside the drive
- Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)
- Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.
- Possibility to synchronize the movements in multi-axis systems, even without fieldbus
- Enabling and on-the-fly changing of the motion control modes
